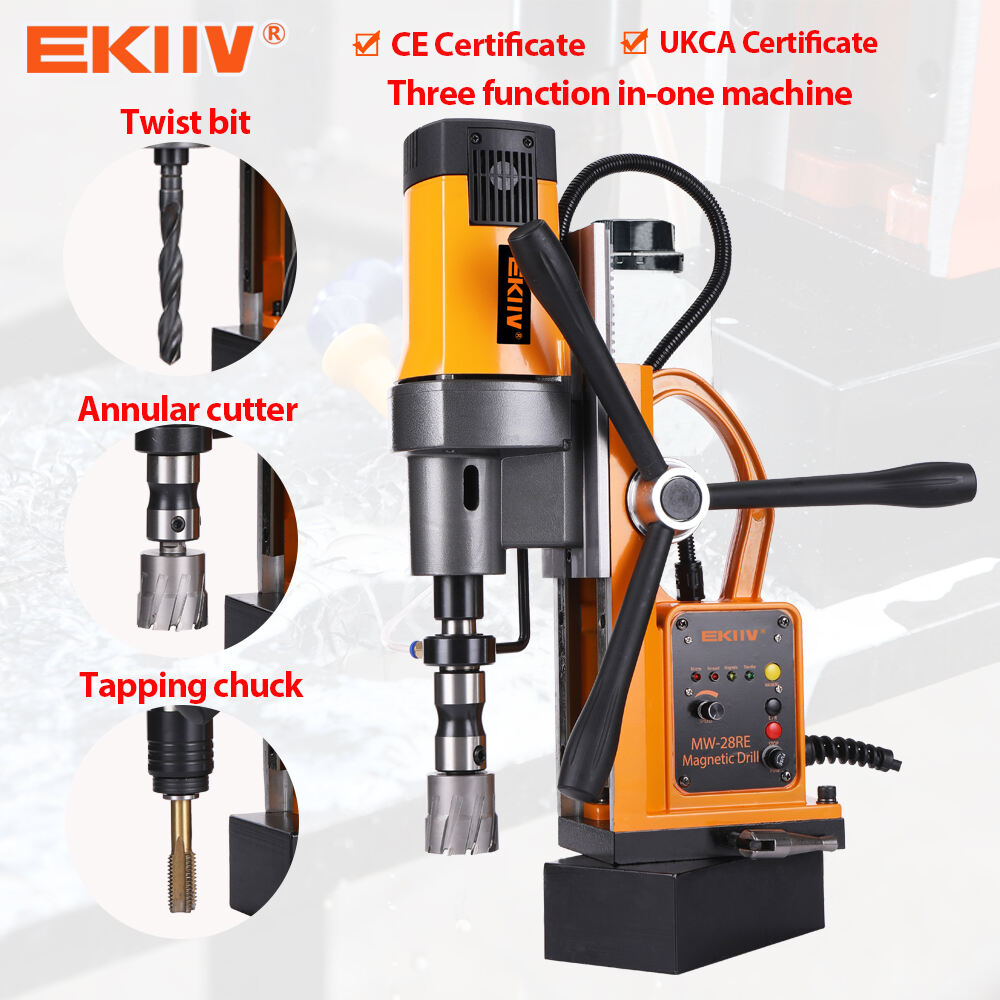

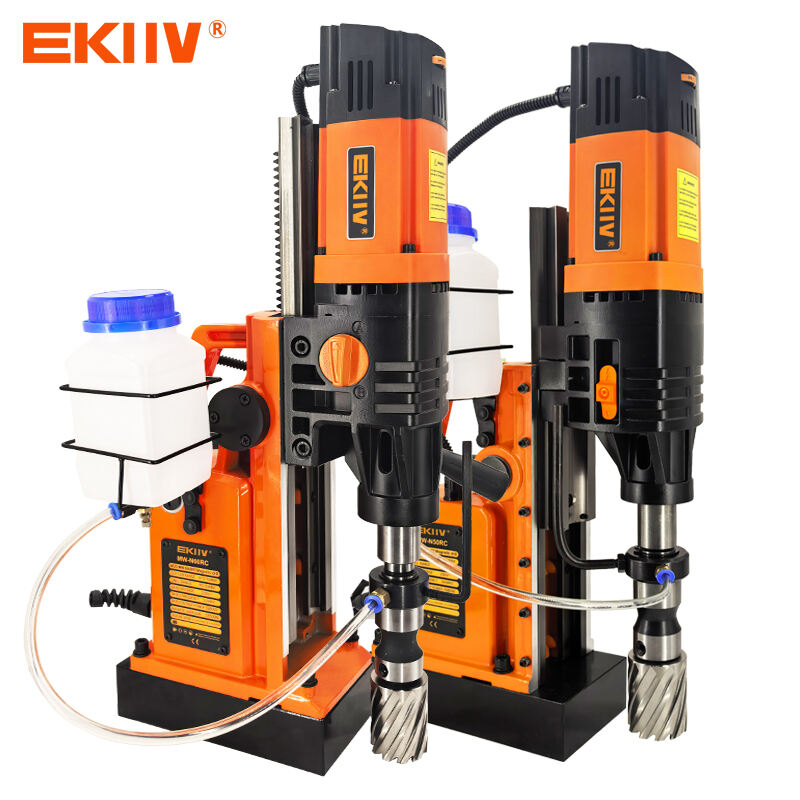

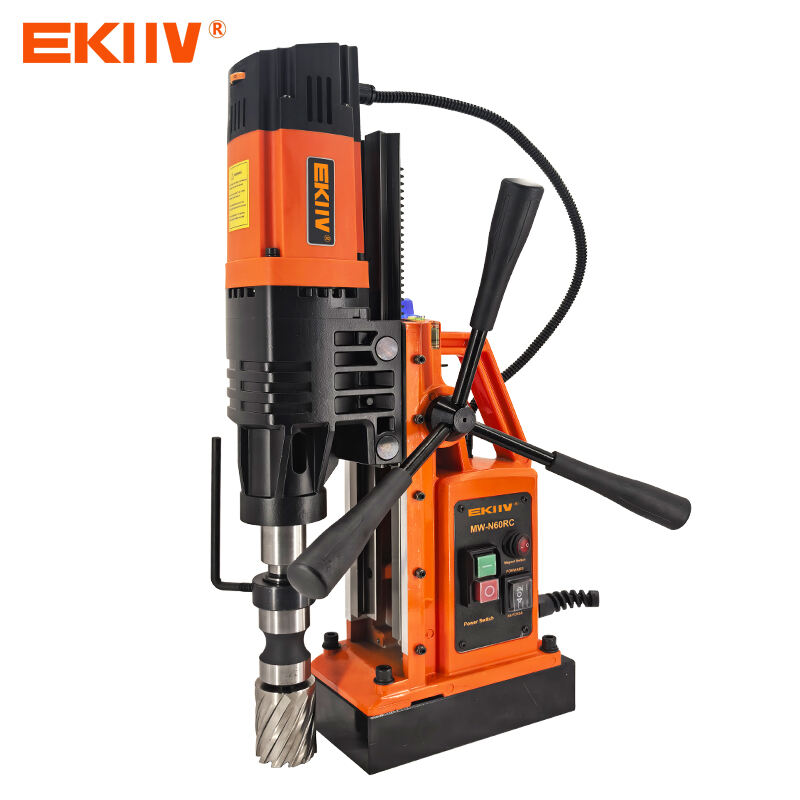

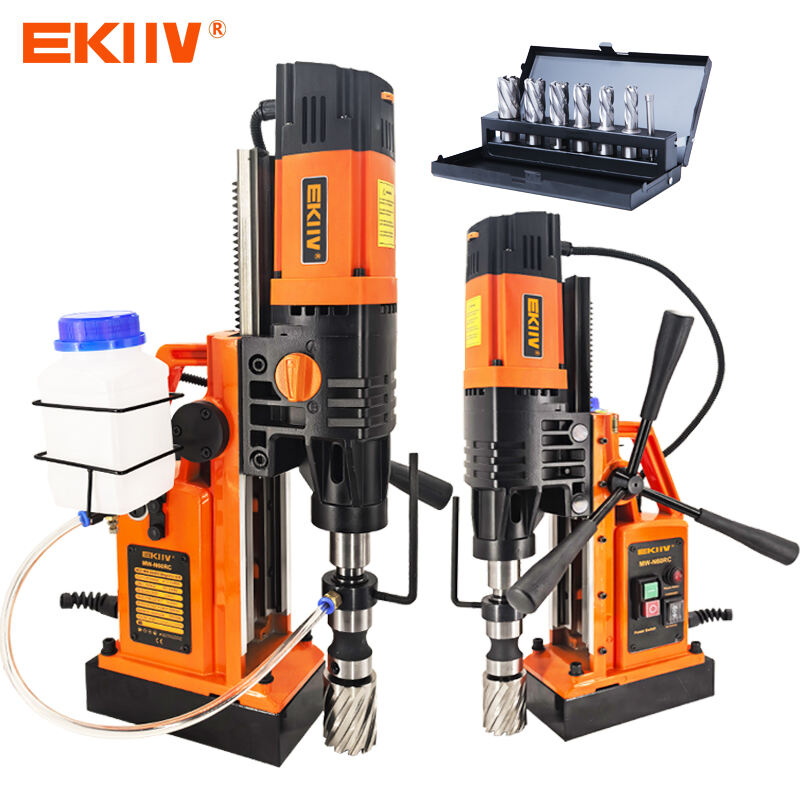

MW-60RC EKIIV 120V 240V mt3 2 levels gear speed electric magnetic drill portable holemaker mag drill for pipe
Description
EKIIV
The 110V 220V mt3 China manufacturer 2 levels gear speed magnetic tapping annular cutting heavy duty magnetic drill machine is simply a gadget durable for professionals that need quick precise openings in steel. Created through a manufacturer China reliable gadget consists of 2 levels of gear price towards sustain a variety of products thicknesses.
Among lots of main choices that include the EKIIV drill magnetic its own cutting annular work. This allows for cleanse; precise openings being completely rounded without the burrs or even edges being rugged. The drill furthermore has a foundation magnetic significance that it might be easily connected to any type of steel location, guaranteeing a protected steady location throughout use.
The EKIIV drill magnetic is running on a 110V or even energy 220V that creates it ideal for utilized in a myriad of setups. The MT3 taper pin assurances a keep solid the cutting gadget, providing included precision accuracy.

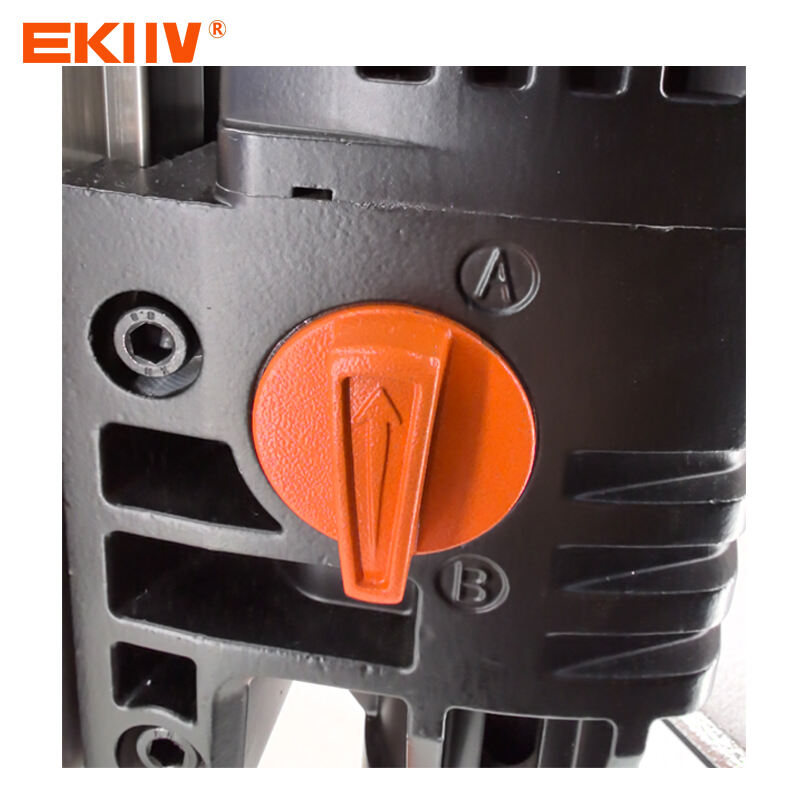

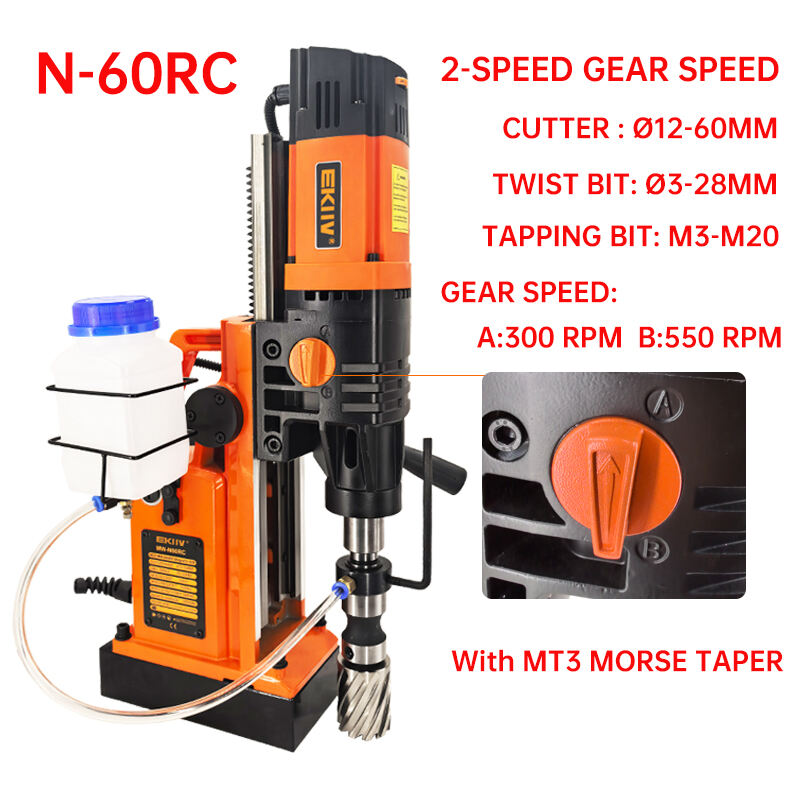

This drill magnetic 2 equipment, that offer a variety of prices when it come to the blade item dimension deepness being pierced. The device very initial at 50-250 RPM, although the second gear runs at 120-480 RPM. This option of prices allows the EKIIV drill magnetic deal with lots of products, consisting of steel, steel, lightweight aluminum.
The EKIIV 110V 220V mt3 China manufacturer 2 levels gear speed magnetic tapping annular cutting heavy duty magnetic drill machine is easy towards utilize preserve. The motor is produced optimum efficiency resilience, when the ergonomic deals with source a keep use comfy. The drill furthermore consists of a coolant integrated, which gets rid of particles together with warm with the workshop, prolonging the life expectancy around the gadget cutting.
Product name |
Magnetic Core Drill Machine |
||||
Model |
MW-4000RC |
N-50RC |
N-60RC |
||
Input power |
1480W |
1880W |
2080W |
||
Magnetic adhasion |
13500N |
18500N |
19500N |
||
Load speed |
0-690 RPM |
Gear ：350 /650rpm
Stepless：250~650 rpm
|
Gear ：350 /650rpm
Stepless：250~650 rpm
|
||
Stroke |
235mm |
295mm |
310mm |
||
Max cutting depth |
50mm(2") |
100mm(4") |
100mm(4") |
||
Max cutter capacity diameter |
40mm(1-9/16'') |
50mm(2") |
60mm |
||
Max diameter of twist drill |
16mm |
23mm |
28mm |
||
Max diameter of tapping |
M16 |
M18 |
M20 |
||
Motor can adjust the height to |
145mm |
165mm |
165mm |
||
Min cutter depth |
10mm |
10mm |
10mm |
||
The type of shank |
19.05mm（3/4") |
19.05mm（3/4") |
19.05mm（3/4") |
||
Total weight |
14.5kgs |
26kgs |
27kgs |
||
